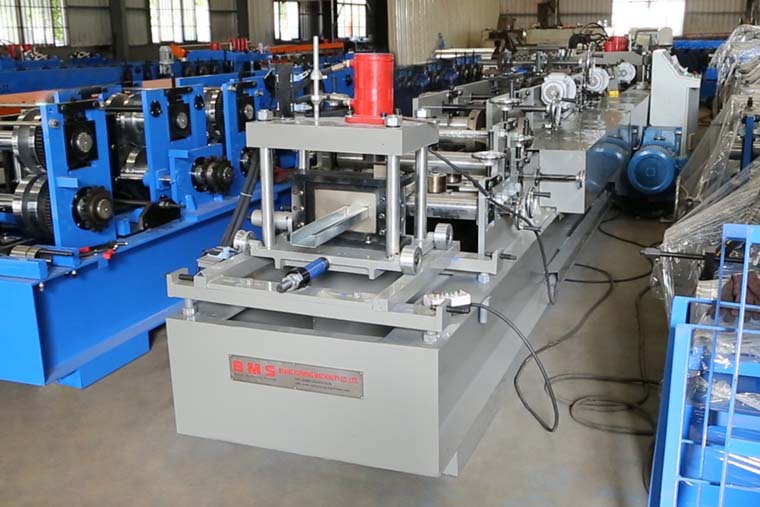

1.Main features of CU purlin roll forming machine

    The advantages of CU purlin machine are as follows:

    1.Accurate profiles,similar as Samco Purlin Roll forming Line for Solar Profiles

    2.Beautiful appearance.

    3.Stable and high efficiency.

    4.Easy operation, low maintenance cost

2.Detailed Images of CU purlin roll forming machine

    Machine Parts

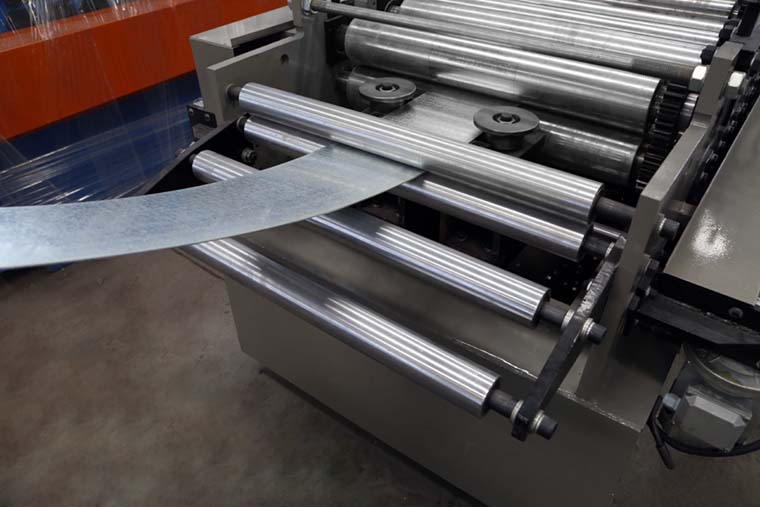

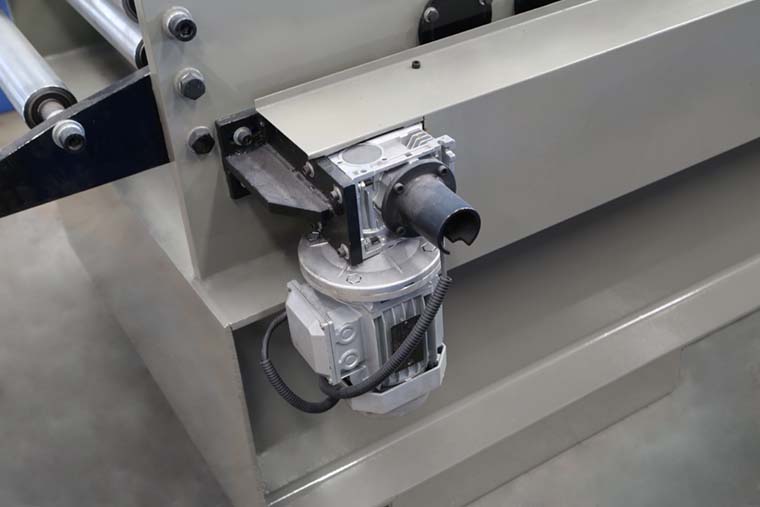

        1) CU purlin machine arc feeding and leveling device

        Brand: BMS    Original: China

                                                  Automatic feeding control

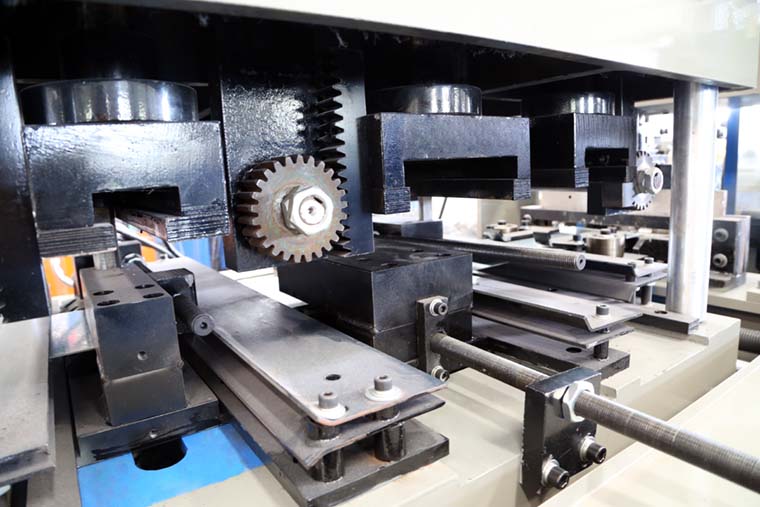

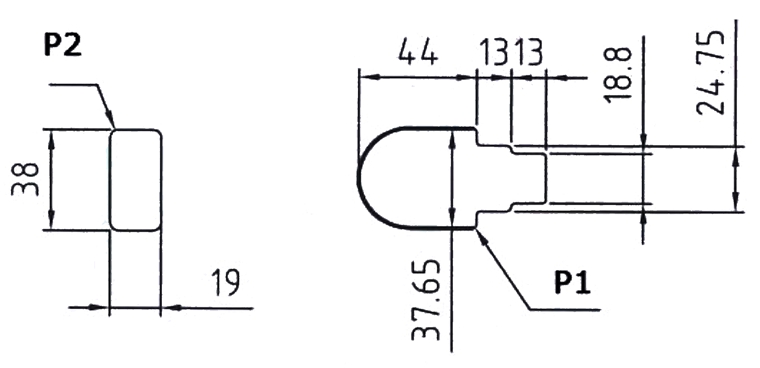

        2) CU purlin machine punching system

        3) CU purlin machine hydraulic pre-cutter

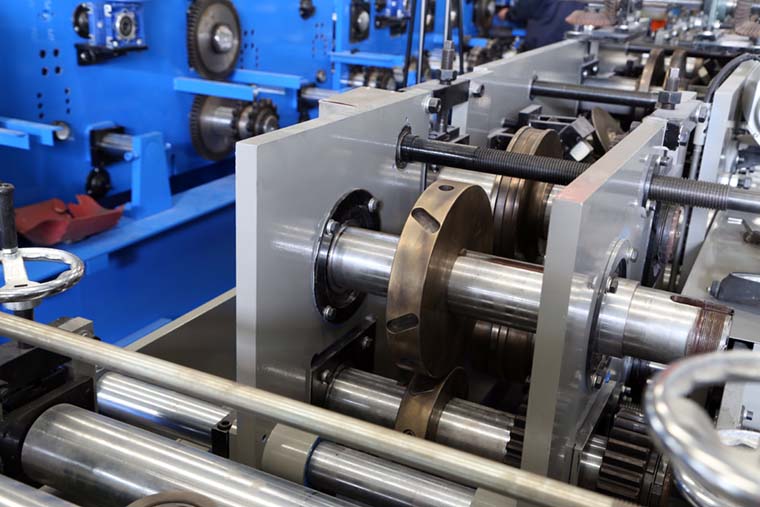

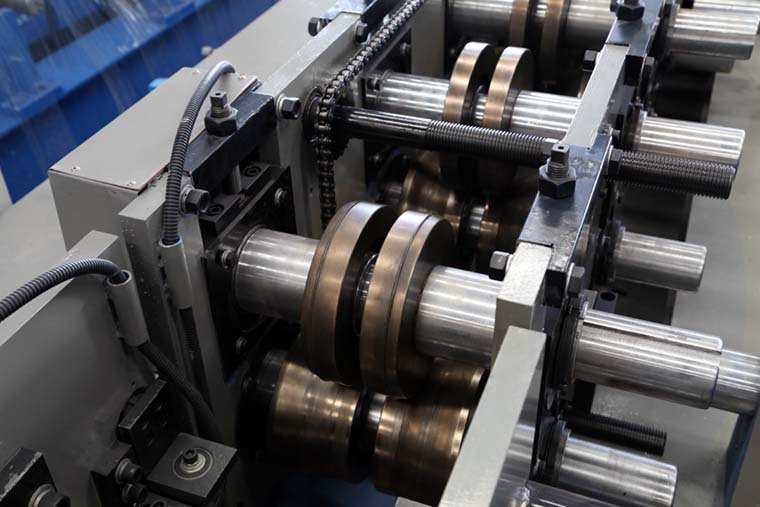

        4) CU purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding

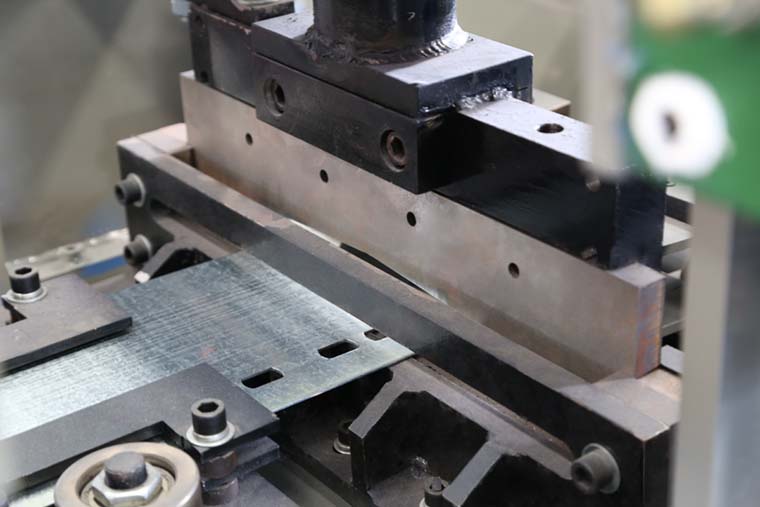

        5) CU purlin machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

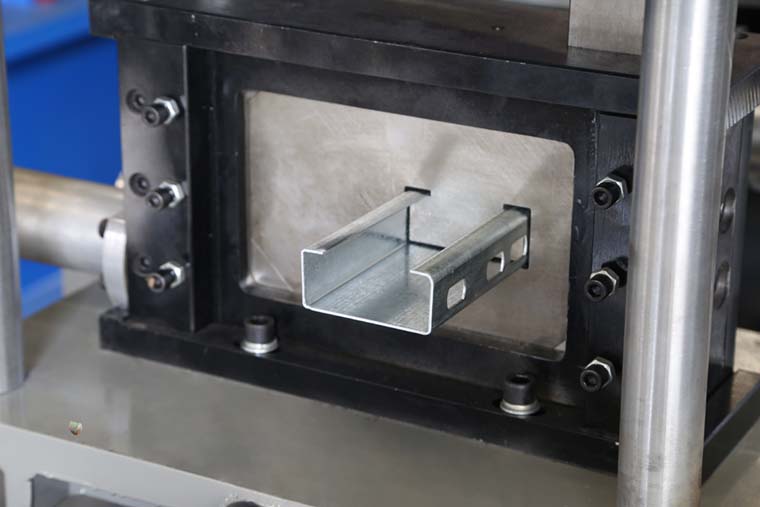

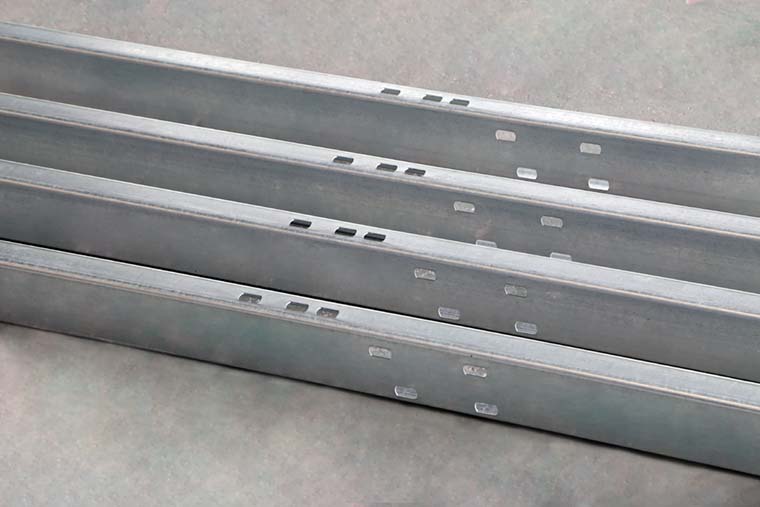

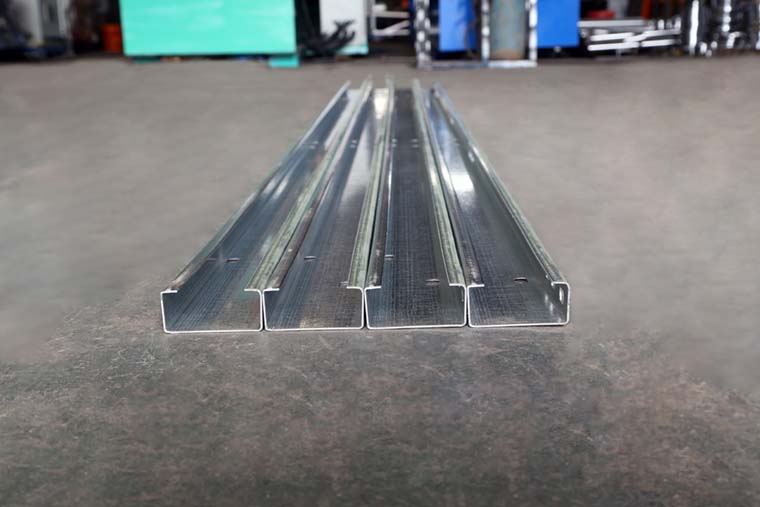

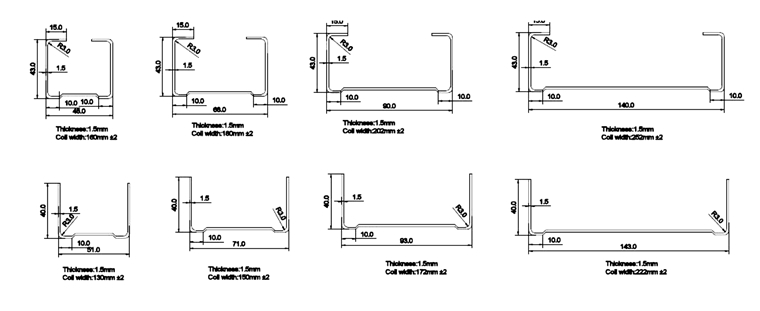

        6) CU purlin machine product show

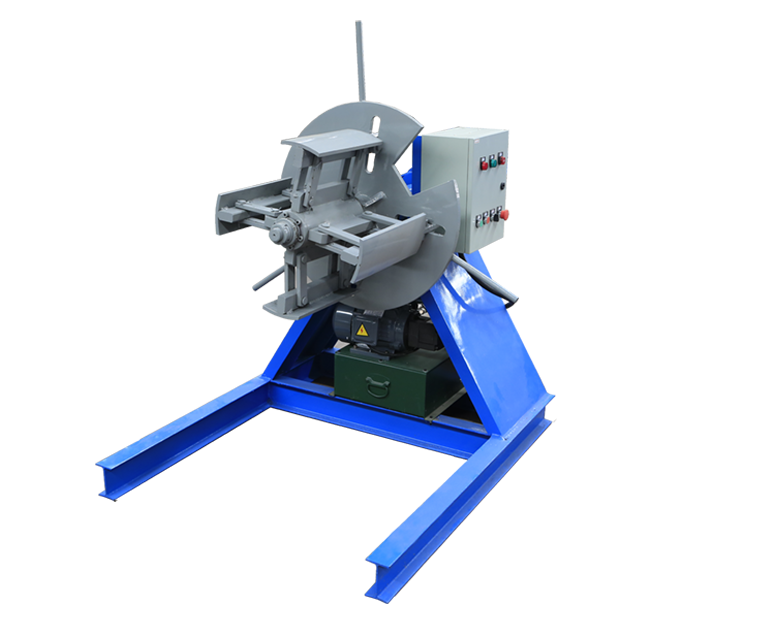

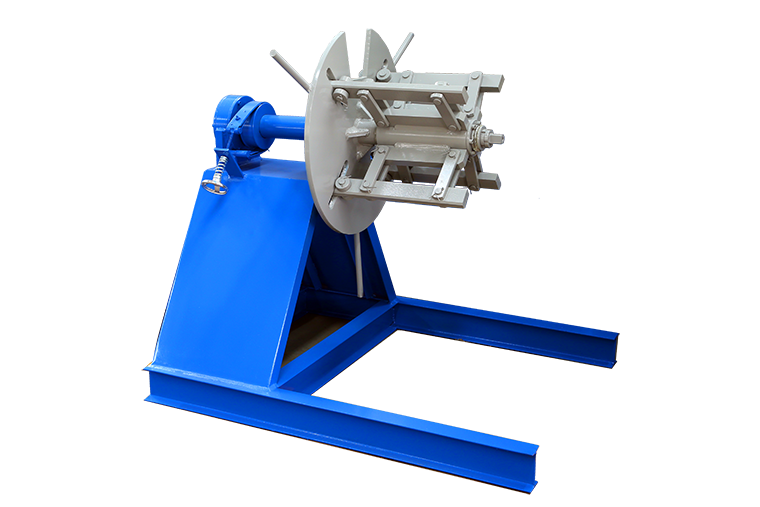

        7) CU purlin roll forming machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 500mm±30mm

        Capacity: Max. 3Ton

    With 3 tons hydraulic decoiler for option

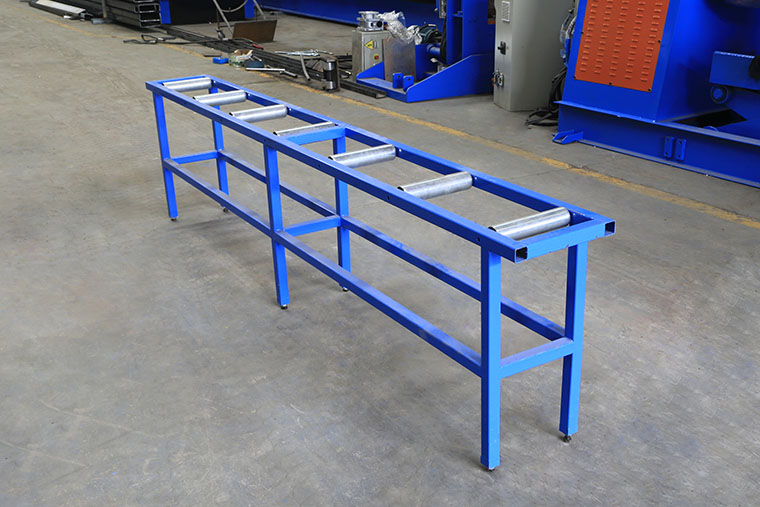

        8) CU purlin machine exit rack

        Un-powered,two units

Other details of CU purlin roll forming machine

Suitable for material with thickness 1.0-3.0mm

Shafts manufactured from 45#,Main shaft diameter=φ55/70mm,precision machined

Motor driving,Gear chain transmission, 15 rollers to form.

Main motor=7.5KW , Frequency speed control. Forming speed approx.18m/min

PLC Control System (Touch screen:German Schneider Electric/Taiwan WEINVIEW,

Inverter :Taiwan DELTA/SHILIN,Encoder :Japan Koyo/OMRON)

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English

After-sale service of CU purlin roll forming machine

1. The warranty of CU purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
